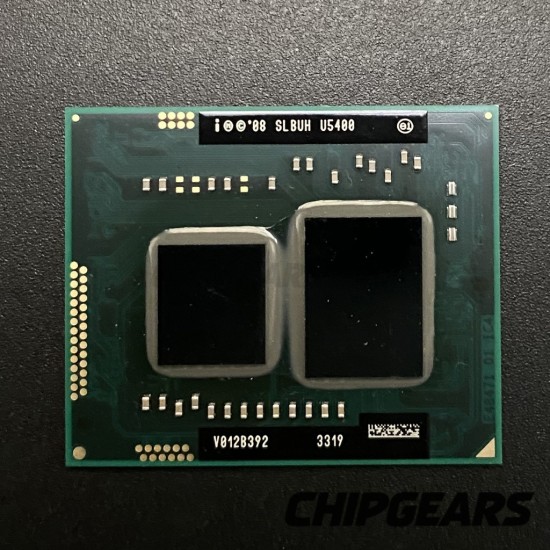

Intel Pentium U5400 CPU CN80617006042AC SLBUH BGA1288 1.2GHz 2Core ULV Processor

Type: CPU / Microprocessor
Market segment: Mobile
Family: Intel Pentium Dual-Core Mobile
Model number: U5400
Part number: CN80617006042AC
Frequency: 1200 MHz
Low power frequency: 667 MHz
Bus speed: 2.5 GT/s DMI
Clock multiplier: 9

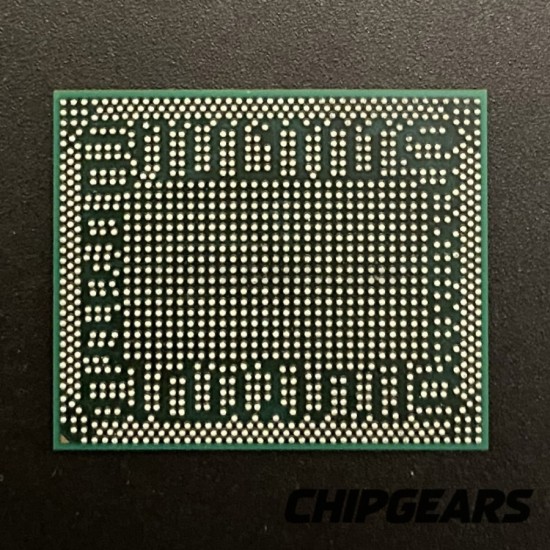

Package: 1288-ball micro-FCBGA10
Socket: BGA1288
Microarchitecture: Westmere
Manufacturing process: 0.032 micron
Data width: 64 bit
The number of CPU cores: 2/2
Level 1 cache size: 2 x 32 KB 4-way set associative instruction caches
2 x 32 KB 8-way set associative data caches
Level 2 cache size: 2 x 256 KB 8-way set associative caches
Level 3 cache size: 3 MB 12-way set associative shared cache

Pentium Mobile U5400 is the first dual-core mobile Pentium CPU built on 32 nm process. As the "U" prefix in the processor number suggests, this mobile processor is an ultra-low voltage (ULV) part, that features smaller height owing to micro-BGA package, and significantly better power dissipation. As usual for ULV microprocessors, to achieve this kind of power savings, the U5400 uses lower core voltage and runs at much lower frequency, just 1.2 GHz, than standard-power microprocessors.

New old stock.
